特点：

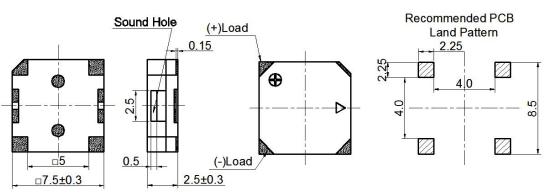

●体积小（7.5x7.5x2.5mm）
●声压高（3V时≥85dB）
●消耗电流（≤100mA，3.6V2.7kHZ）
●安装简便（编带贴片焊接）
电性能参数
Model No | BCE-MX7525A-03627 |

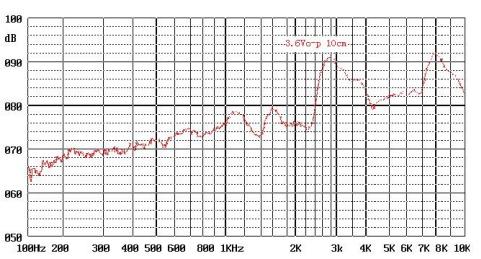

Min Sound Pressure Level | 85dB at 2.7KHZ at 3.6Vo-p at 10cm |
Operating Voltage | 2~4V |
Max Current Consumption | <100mA |
Resonant Frequency | 2.7KHz |
Coil lmpedance | 16±3Ω |
Housing Material | LCP |
Operating Temperature | -30℃~+80℃ |
Storage Temperature | -40℃~+85℃ |
Weight | 0.3g |
