特点：

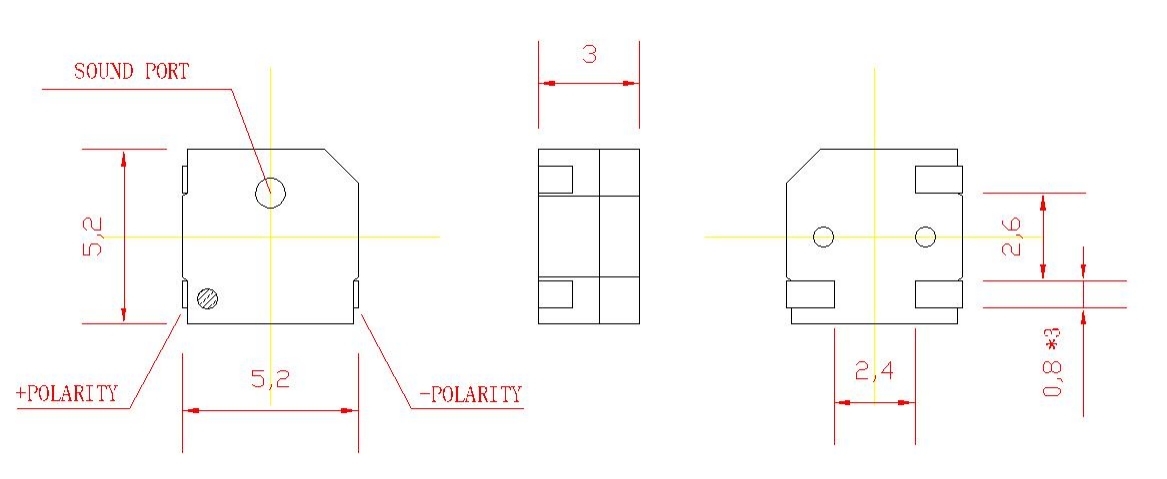

●体积小（5.2x5.2x3mm）
●声压高（3V时≥75dB）
●消耗电流（≤110mA，3V4kHZ）
●安装简便（编带贴片焊接）
电性能参数
Model No | BCE-MX5030A-0304 |
Min Sound Pressure Level | 75dB at 4KHZ at 3Vo-p at 10cm |
Operating Voltage | 2~4V |
Max Current Consumption | <110mA |
Resonant Frequency | 4KHz |
Coil lmpedance | 12±3Ω |
Housing Material | LCP |
Operating Temperature | -30℃~+80℃ |
Storage Temperature | -40℃~+85℃ |
Weight | 0.15g |
