特点:

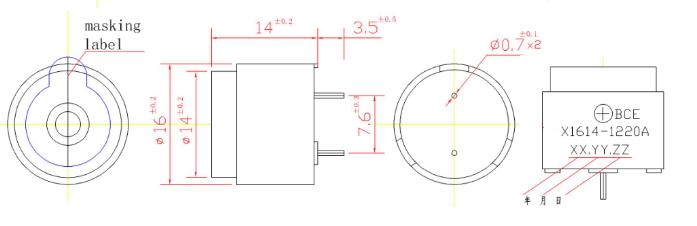

●体积小(16x14mm)
●声压高(12V时≥85dB)
●消耗电流(≤60mA,5V2048HZ)
●安装简便(卧式插入焊接)
电性能参数
Model No | BCE-X1614-1220A |
Min Sound Pressure Level | 85dB at 2048HZ at 12Vo-p at 10cm |
Operating Voltage | 8~15V |
Max Current Consumption | <60mA |
Resonant Frequency | 2048Hz |
Coil lmpedance | 115±12Ω |
Housing Material | NPPO |
Operating Temperature | -20℃~+70℃ |
Storage Temperature | -30℃~+80℃ |
Weight | 6.5g |
