特点：

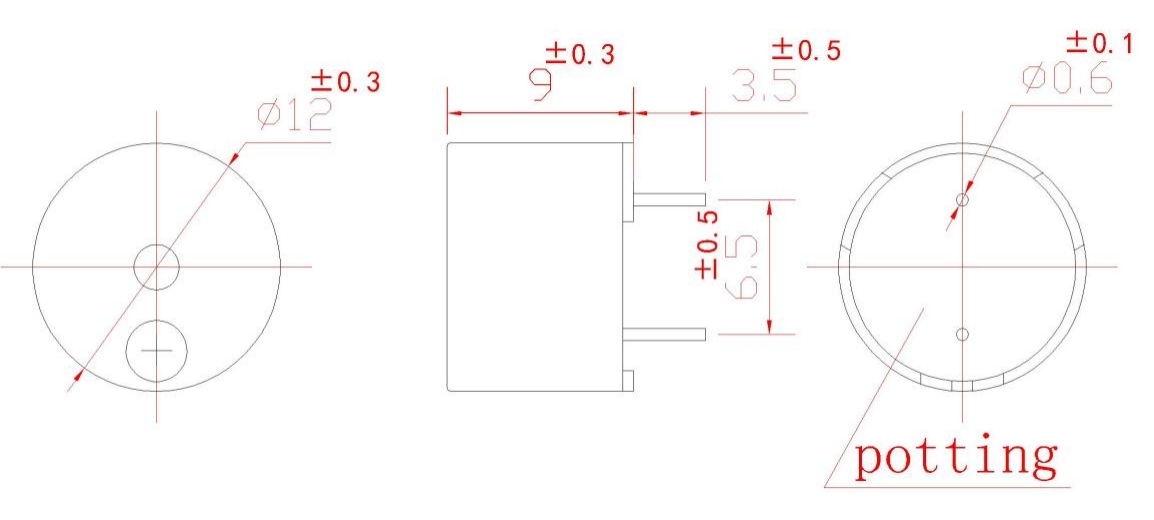

●体积小（12x9mm）
●声压高（5V时≥85dB）
●消耗电流（≤50mA，5V2400HZ）
●安装简便（卧式插入焊接）
电性能参数
Model No | BCE-X1209-0524 |

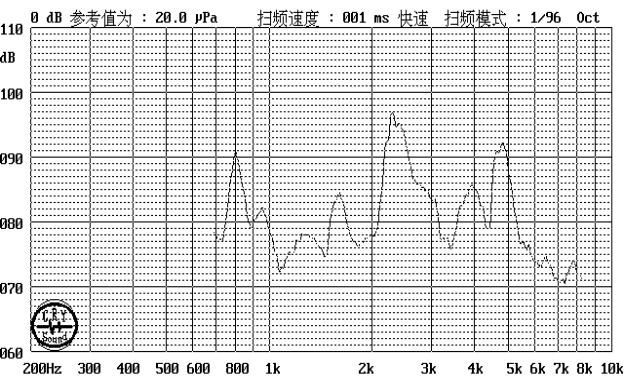

Min Sound Pressure Level | 85dB at 2400HZ at 5Vo-p at 10cm |
Operating Voltage | 4~7V |
Max Current Consumption | <50mA |
Resonant Frequency | 2400Hz |
Coil lmpedance | 42±6Ω |
Housing Material | PPO |
Operating Temperature | -20℃~+70℃ |
Storage Temperature | -30℃~+80℃ |
Weight | 1.3g |
