特点：

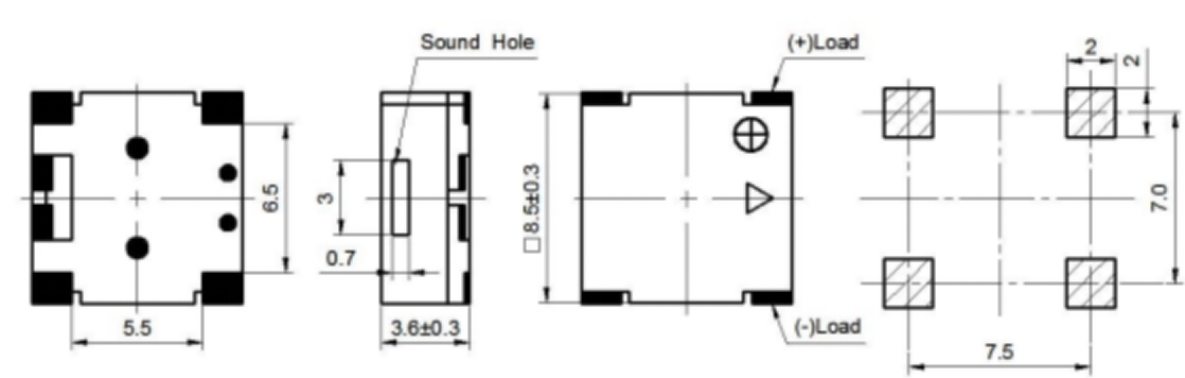

●体积小（8.5x8.5x3.6mm）
●声压高（3V时≥85dB）
●消耗电流（≤100mA，3.0V2.7kHZ）
●安装简便（编带贴片焊接）
电性能参数
Model No | BCE-MX8536A |
Rated Voltage | 3V |
Min Sound Pressure Level | 85dB |
Operating Voltage | 2~5V |
Max Current Consumption | <100mA |
Resonant Frequency | 2.7KHz |
Coil lmpedance | 18±3Ω |
Housing Material | LCP |
Operating Temperature | -30℃~+80℃ |
Storage Temperature | -40℃~+85℃ |
Weight | 0.5g |
