特点：

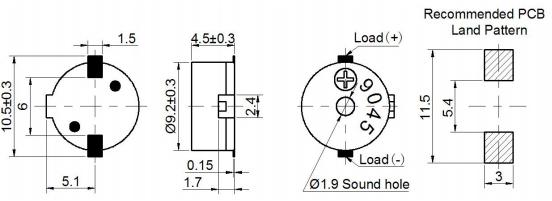

●体积小（Ø9x4.5mm）
●声压高（3V时≥85dB）
●消耗电流（≤100mA，3.0V2.7kHZ）
●安装简便（编带贴片焊接）
电性能参数
Model No | BCE-MX0945A | |
Rated Voltage | 3V | 5V |
Min Sound Pressure Level | 85dB | 85dB |
Operating Voltage | 2~5V | 4~7V |
Max Current Consumption | <100mA | <100mA |
Resonant Frequency | 2.7KHz | 2.7KHz |
Coil lmpedance | 16±3Ω | 30±4Ω |
Housing Material | LCP | |
Operating Temperature | -30℃~+80℃ | |
Storage Temperature | -40℃~+85℃ | |
Weight | 0.6g | |
