特点：

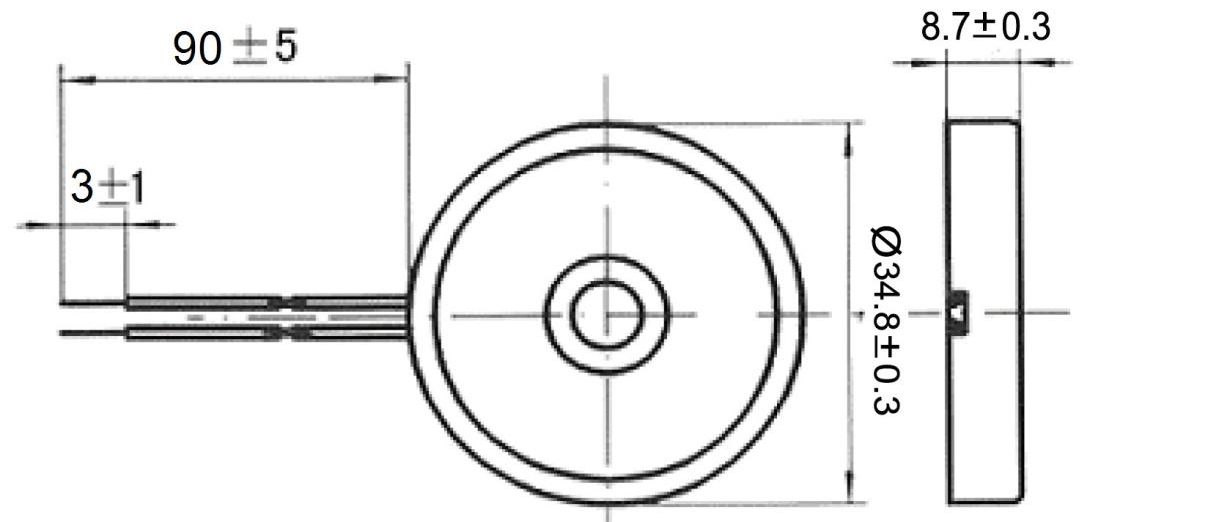

●体积小（34.8x8.7mm）
●声压高（3V时≥80dB）
●消耗电流小（≤4mA，3V3.4kHZ）
●安装简便（引线式）
电性能参数
Model No | BCE-31034 |
Min Sound Pressure Level | 80dB at 3.4KHZ at3Vp-p at 10cm |
Operating Voltage | 1~25V |
Max Current Consumption | <4mA |
Resonant Frequency | 3.4±0.5KHz |
Capacitance at 120HZ | 45±30%nF |
Housing Material | PPO |
Operating Temperature | -20℃~+70℃ |
Storage Temperature | -30℃~+80℃ |
Weight | 4.3g |
