特点：
●体积小（17x7.5mm）
●声压高（9V时≥80dB）
●消耗电流小（≤3mA，9V4kHZ）
●安装简便（卧式插入焊接）
电性能参数
Model No | BCE-17240P |

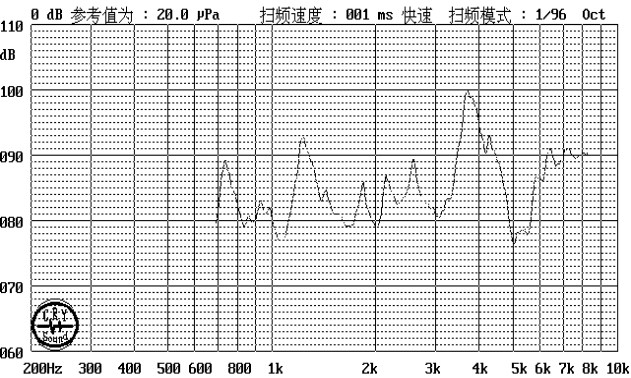

Min Sound Pressure Level | 80dB at 4KHZ at 9Vp-p at 10cm |
Operating Voltage | 3~30V |
Max Current Consumption | <3mA |
Resonant Frequency | 4.0±0.5KHz |
Capacitance at 120HZ | 14±30%nF |
Housing Material | PBT |
Operating Temperature | -20℃~+70℃ |
Storage Temperature | -30℃~+80℃ |
Weight | 1.0g |
