特点：

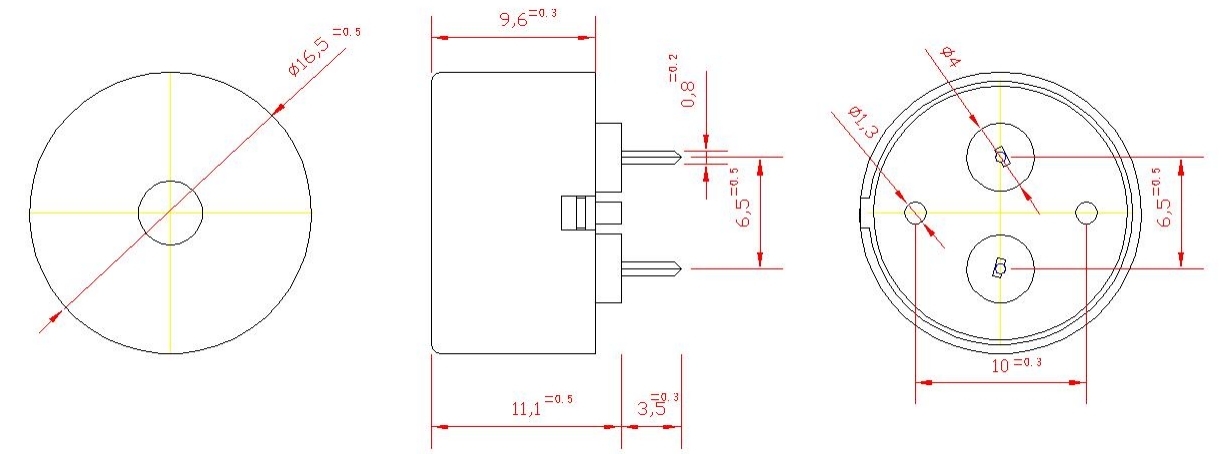

●体积小（16.5x11mm）
●声压高（5V时≥83dB）
●消耗电流小（≤5mA，5V2.4kHZ）
●安装简便（卧式插入焊接）
电性能参数
Model No | BCE-16511 |

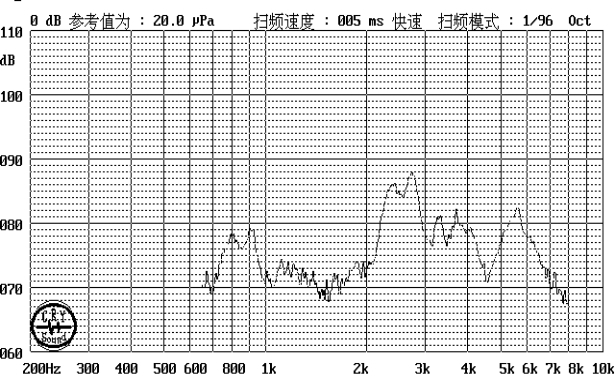

Min Sound Pressure Level | 83dB at 2.4KHZ at5Vp-p at 10cm |
Operating Voltage | 3~25V |
Max Current Consumption | <5mA |
Resonant Frequency | 2.4KHz |
Capacitance at 120HZ | 28±30%nF |
Housing Material | PBT |
Operating Temperature | -20℃~+70℃ |
Storage Temperature | -30℃~+80℃ |
Weight | 1.1g |
