特点：

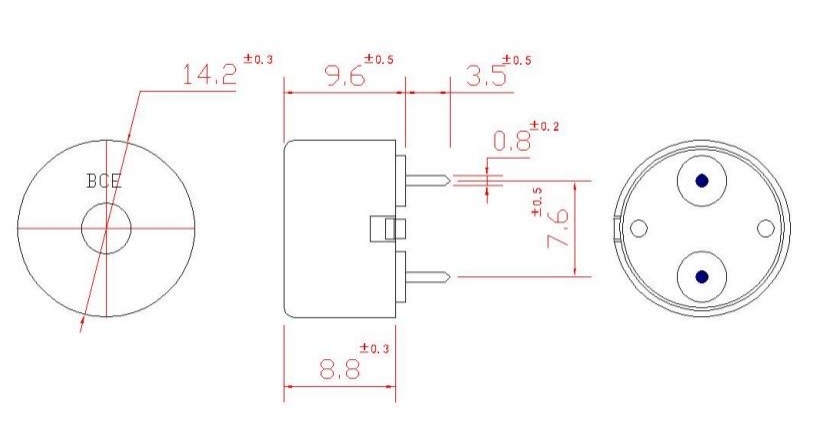

●体积小（14x9.6mm）
●声压高（5V时≥90dB）
●消耗电流小（≤3mA，5V4kHZ）
●安装简便（卧式插入焊接）
电性能参数
Model No | BCE-14096 |
Min Sound Pressure Level | 90dB at 4KHZ at 5Vp-p at 10cm |
Operating Voltage | 3~30V |
Max Current Consumption | <3mA |
Resonant Frequency | 4.0±0.5KHz |
Capacitance at 120HZ | 14±30%nF |
Housing Material | PBT |
Operating Temperature | -20℃~+70℃ |
Storage Temperature | -30℃~+80℃ |
Weight | 1.2g |
