特点:

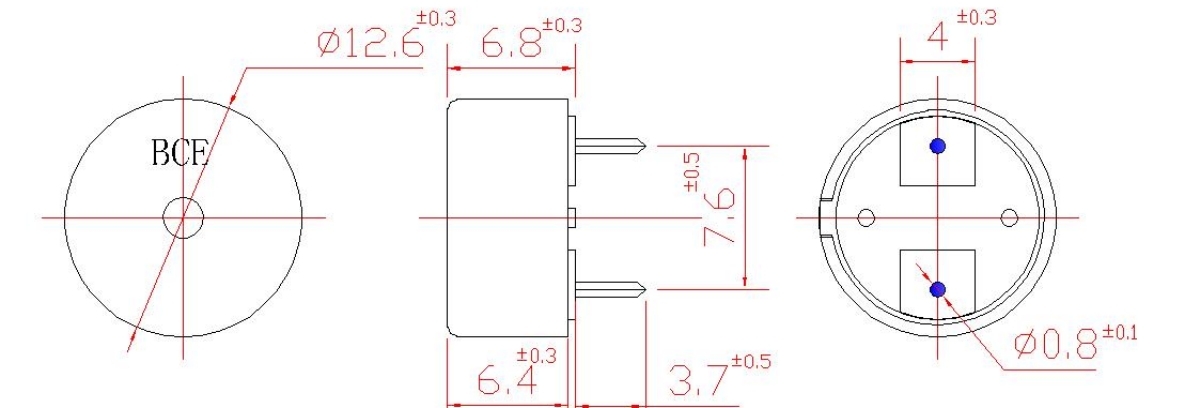

●体积小(12.6x7.0mm)
●声压高(9V时≥80dB)
●消耗电流小(≤3mA,9V4kHZ)
●安装简便(卧式插入焊接)
电性能参数
Model No | BCE-13240 |
Min Sound Pressure Level | 80dB at 4KHZ at 9Vp-p at 10cm |
Operating Voltage | 3~25V |
Max Current Consumption | <3mA |
Resonant Frequency | 4.0±0.5KHz |
Capacitance at 120HZ | 12±30%nF |
Housing Material | PBT |
Operating Temperature | -20℃~+70℃ |
Storage Temperature | -30℃~+80℃ |
Weight | 0.7g |
