Speaker

Product

BCE1313040-R08W0.7-A

Detail

Electrical performance parameters


Electrical performance parameters

Model  No

BCE1313040-R08W0.7-A

Rated / Max Input Power

0.7 / 1.0W

Rated Impedance

8±15%Ω

Sound Pressure Level

88±3dB（0.7W/0.1m）at AVE 1.0K 1.6K 2.0K 3.2KHz

Resonant Frequency（Fo）

1100±20%Hz

Frequency Range

Fo~20KHz

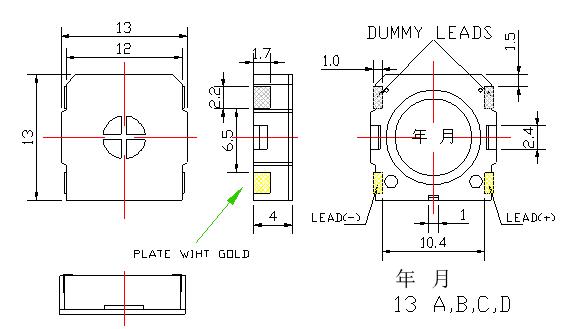

Overall dimension: unit: mm

Frequency response curve

Test method and reference circuit
