Characteristic:

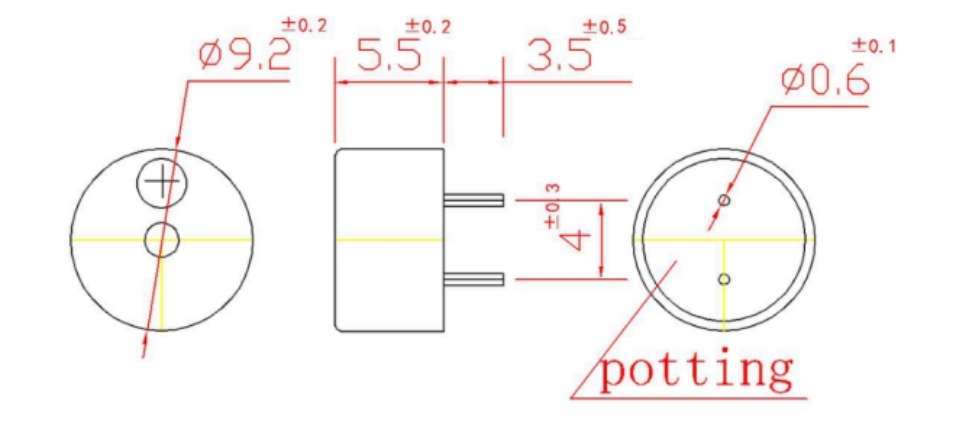

● small volume (9.2x5.5mm)
● high sound pressure (≥ 85dB at 5V)
● consumption current (≤ 80mA, 5v2.7khz)
● easy installation (horizontal insertion welding)
Electrical performance parameters
Model No | BCE-X0955-0527 |
Min Sound Pressure Level | 85dB at 2.7KHZ at 5Vo-p at 10cm |
Operating Voltage | 3~7V |
Max Current Consumption | <80mA |
Resonant Frequency | 2.73KHz |
Coil lmpedance | 42±6Ω |
Housing Material | PPO（PBT） |
Operating Temperature | -20℃~+70℃ |
Storage Temperature | -30℃~+80℃ |
Weight | 0.9g |
