Characteristic:

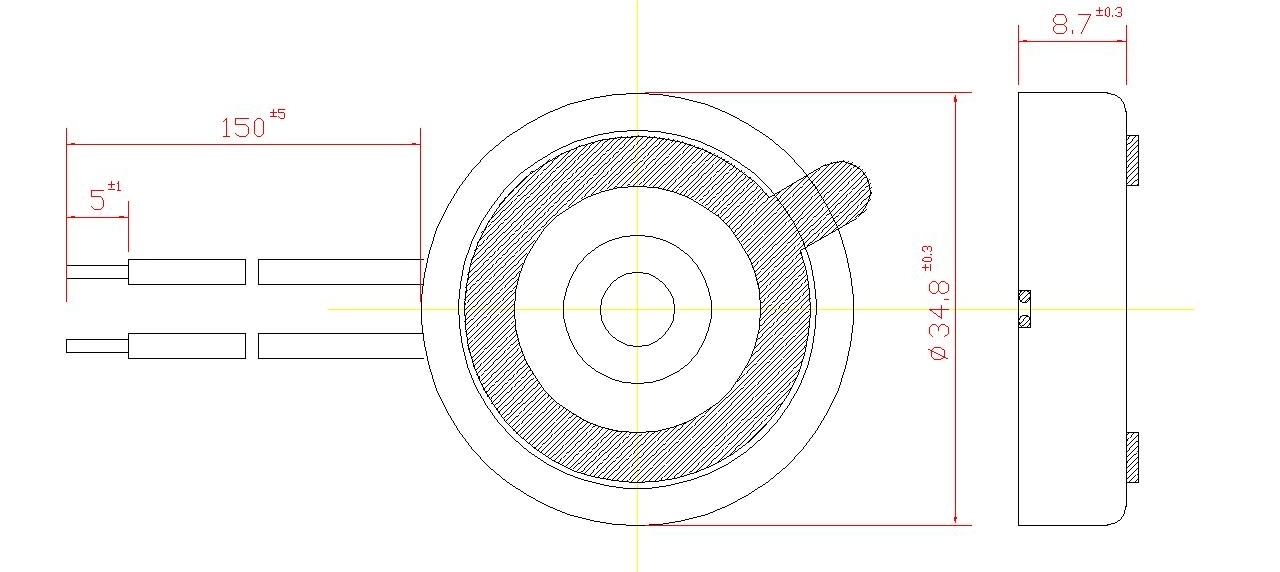

● small volume (34.8x8.7mm)
● high sound pressure (≥ 82db at 5V)
● low consumption current (≤ 4mA, 5v1.15khz)
● easy installation (lead type)
Electrical performance parameters
Model No | BCE-3513 |
Min Sound Pressure Level | 82dB at 1.15KHZ at5Vp-p at 10cm |
Operating Voltage | 1~25V |
Max Current Consumption | <4mA |
Resonant Frequency | 1.15±0.5KHz |
Capacitance at 120HZ | 45±30%nF |
Housing Material | ABS |
Operating Temperature | -20℃~+70℃ |
Storage Temperature | -30℃~+80℃ |
Weight | 4.3g |
