Characteristic:

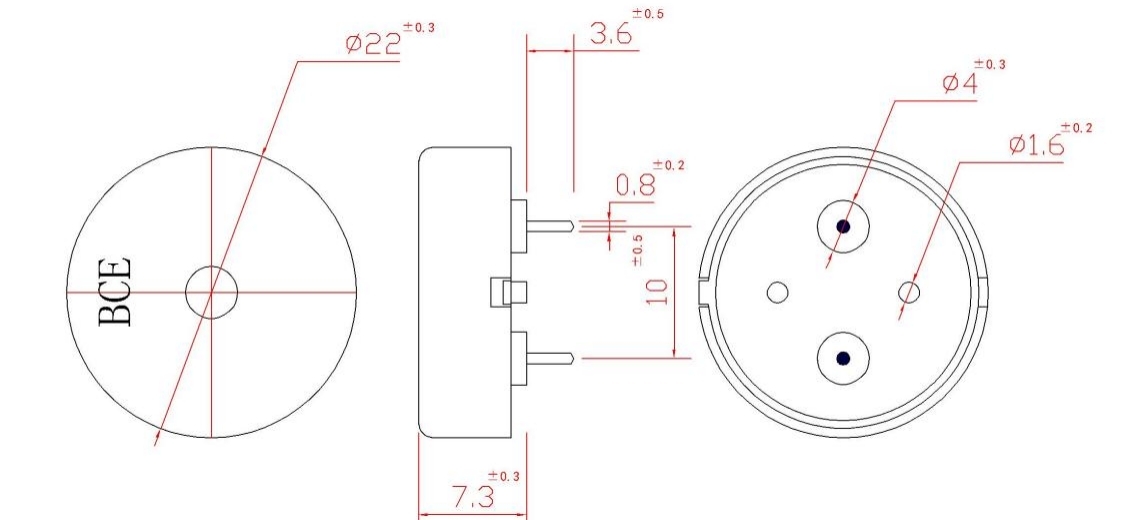

● small volume (22x7.5mm)
● high sound pressure (≥ 90dB at 5V)
● low consumption current (≤ 8Ma, 5v4khz)
● easy installation (horizontal insertion welding)
Electrical performance parameters
Model No | BCE-2201 |

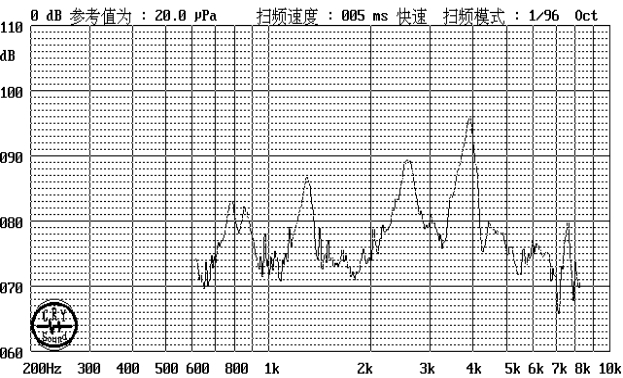

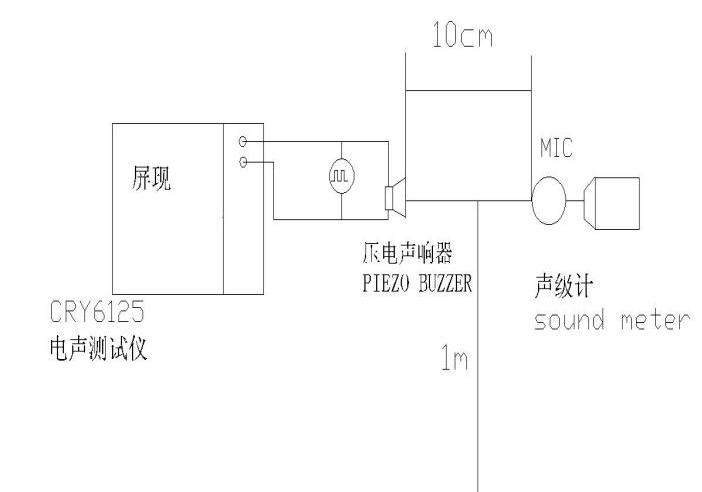

Min Sound Pressure Level | 90dB at 4KHZ at 5Vp-p at 10cm |
Operating Voltage | 3~30V |
Max Current Consumption | <8mA |
Resonant Frequency | 4.0±0.5KHz |
Capacitance at 120HZ | 16±30%nF（30±30%nF） |
Housing Material | PBT |
Operating Temperature | -20℃~+70℃ |
Storage Temperature | -30℃~+80℃ |
Weight | 2.0g |
