特点:

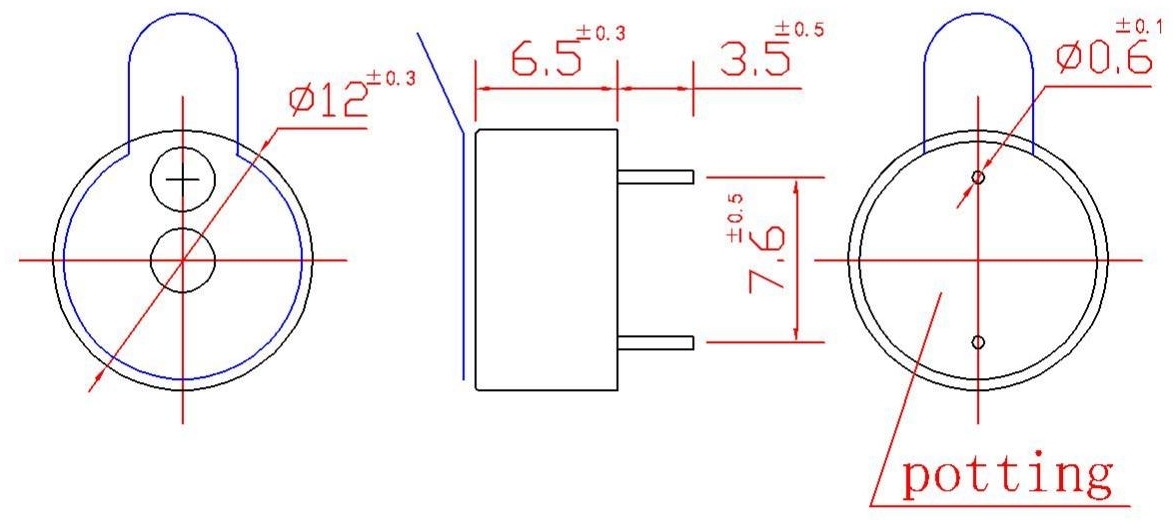

●体积小(12x6.5mm)
●声压高(5VDC时≥85dB)
●消耗电流(≤30mA,5VDC)
●安装简便(卧式插入焊接)
电性能参数
Model No | BCE-D12065 | |
Rated Voltage | 3V | 5V |
Min Sound Pressure Level | 83dB | 85dB |
Operating Voltage | 2-4.5V | 2-7V |
Max Current Consumption | 30mA | |
Resonant Frequency | 2700±300HZ(3100±300) | |
Housing Material | PPO(PBT) | |
Operating Temperature | -20℃~+70℃ | |
Storage Temperature | -30℃~+80℃ | |
Weight | 1.4g |
