特点：

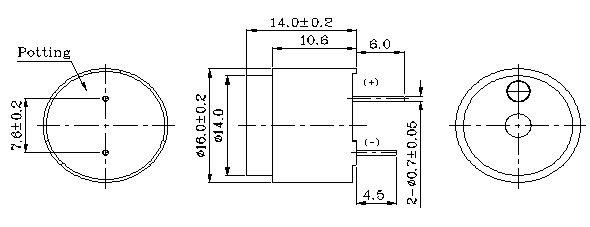

●体积小（16x14mm）
●声压高（5VDC时≥85dB）
●消耗电流（≤30mA，5VDC）
●安装简便（卧式插入焊接）
电性能参数
Model No | BCE-D1614 | |
Rated Voltage | 5V | 12V |
Min Sound Pressure Level | 85dB | 85dB |
Operating Voltage | 2-7V | 8-16V |
Max Current Consumption | 30mA | |
Resonant Frequency | 2300±300HZ | |
Housing Material | PPO（PBT） | |
Operating Temperature | -20℃~+70℃ | |
Storage Temperature | -30℃~+80℃ | |
Weight | 1.6g | |
