特点：

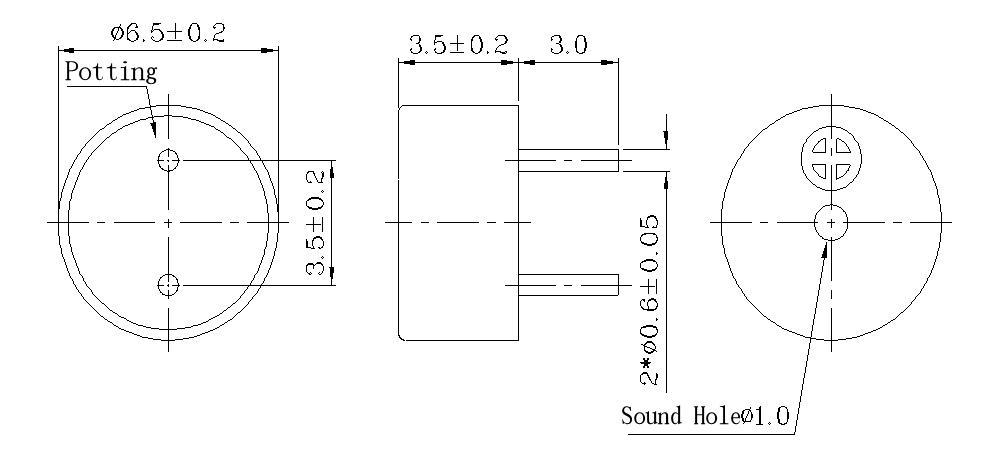

●体积小（6.5x3.5mm）
●声压高（3V时≥80dB）
●消耗电流（≤120mA，3V4kHZ）
●安装简便（卧式插入焊接）
电性能参数
Model No | BCE-X06535-0340R12 |
Min Sound Pressure Level | 80dB at 4KHZ at 3Vo-p at 10cm |
Operating Voltage | 2~4V |
Max Current Consumption | <120mA |
Resonant Frequency | 4.0KHz |
Coil lmpedance | 12±3Ω |
Housing Material | PPO |
Operating Temperature | -20℃~+70℃ |
Storage Temperature | -30℃~+80℃ |
Weight | 0.6g |
