特点：

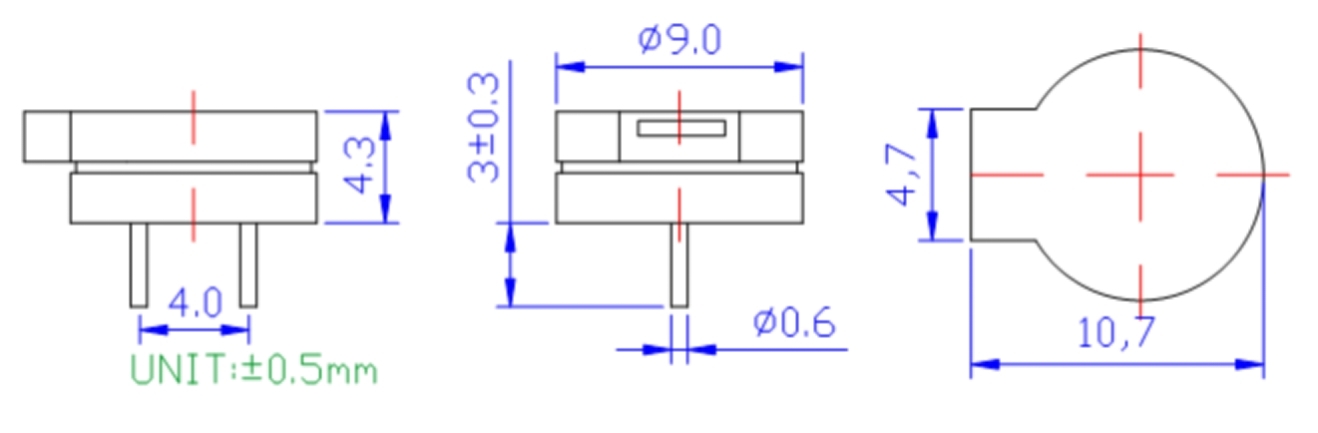

●体积小（9.0x4.3mm）
●声压高（3V时≥83dB）
●消耗电流（≤80mA，3V2.7kHZ）
●安装简便（贴膜引线式）
电性能参数
Model No | BCE-X0904C-0327 |

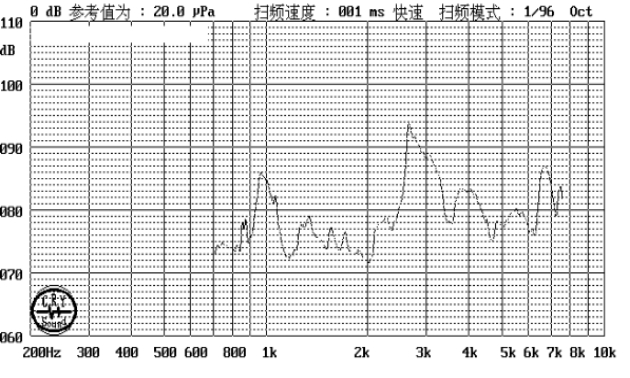

Min Sound Pressure Level | 83dB at 2.7KHZ at 3Vo-p at 10cm |
Operating Voltage | 2~4V |
Max Current Consumption | <80mA |
Resonant Frequency | 2.73KHz |
Coil lmpedance | 16±3Ω |
Housing Material | PPO（PBT） |
Operating Temperature | -20℃~+70℃ |
Storage Temperature | -30℃~+80℃ |
Weight | 0.6g |
