特点：

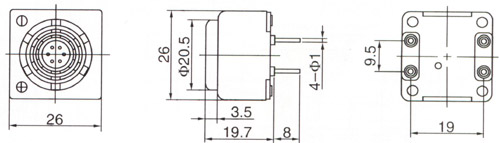

●体积小（26x26x19.5mm）
●声压高（6VDC时≥85dB）
●消耗电流（≤35mA）
●安装简便（立式插入焊接）
电性能参数
Model No | BCE-YMB | |
Rated Voltage | 6V | 12V |
Min Sound Pressure Level | 85dB at30cm | 85dB at30cm |
Operating Voltage | 4-8V | 7-15V |
Max Current Consumption | 35mA | |
Resonant Frequency | 400±100HZ | |
Housing Material | ABS | |
Operating Temperature | -20℃~+60℃ | |
Storage Temperature | -30℃~+70℃ | |
Weight | 17g | |
