特点：

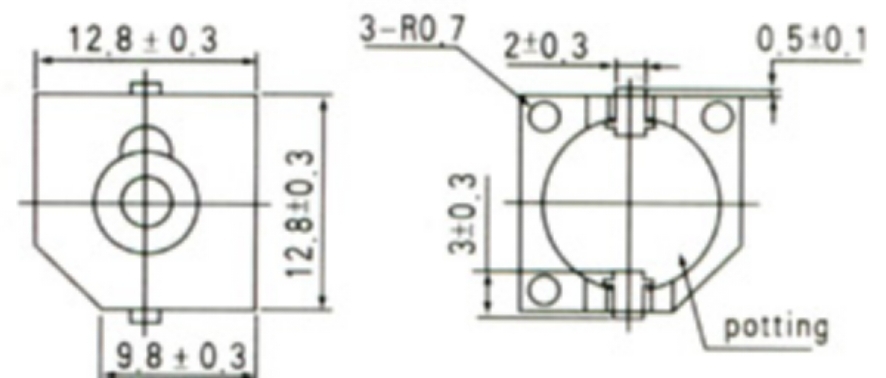

●体积小（12.8x12.8x10mm）
●声压高（12V时≥85dB）
●消耗电流（≤50mA，12V2.4kHZ）
●安装简便（编带贴片焊接）
电性能参数
Model No | BCE-MX12810 | |
Rated Voltage | 5V | 12V |
Min Sound Pressure Level | 85dB | 85dB |
Operating Voltage | 3~7V | 7~14V |
Max Current Consumption | <50mA | <50mA |
Resonant Frequency | 2.4KHz | 2.4KHz |
Coil lmpedance | 45±6Ω | 140±20Ω |
Housing Material | PPS | |
Operating Temperature | -30℃~+80℃ | |
Storage Temperature | -40℃~+85℃ | |
Weight | 2.1g | |
