特点：

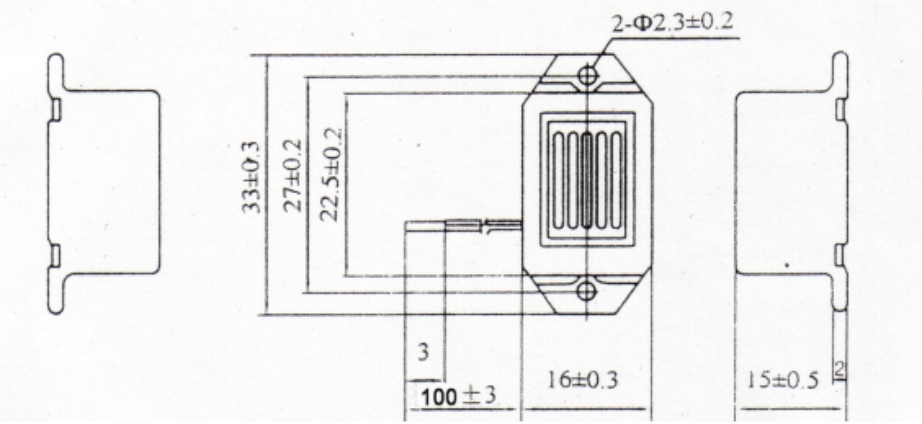

●体积小（22x16x15mm）
●声压高（3VDC时≥80dB）
●消耗电流（≤35mA）
●安装简便（引线式固定焊接）
电性能参数
Model No | BCE-SMB | |
Rated Voltage | 3V | 12V |

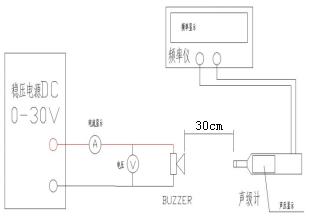

Min Sound Pressure Level | 80dB at30cm | 85dB at30cm |
Operating Voltage | 2-4.5V | 7-15V |
Max Current Consumption | 35mA | |
Resonant Frequency | 400±100HZ | |
Housing Material | ABS | |
Operating Temperature | -20℃~+60℃ | |
Storage Temperature | -30℃~+70℃ | |
Weight | 9g | |
