特点：

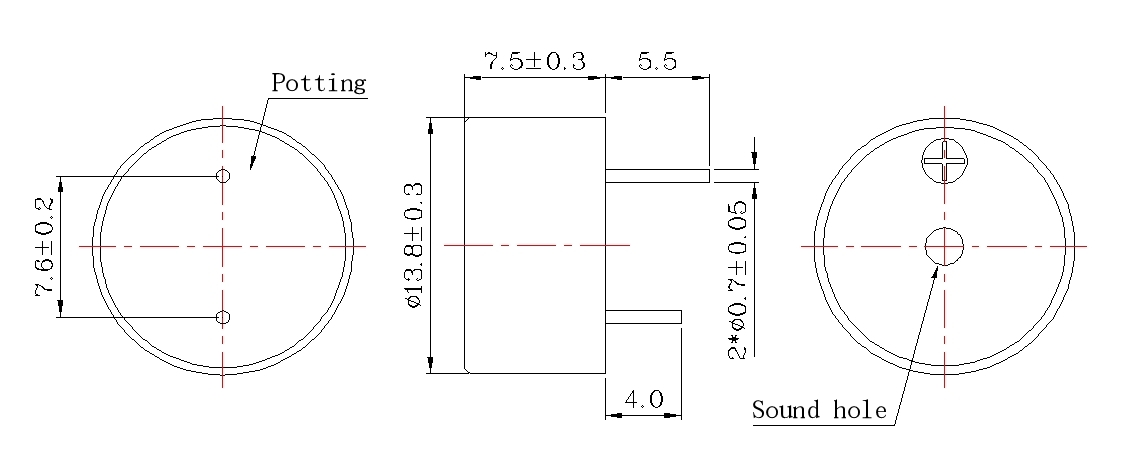

●体积小（14x7.5mm）
●声压高（5VDC时≥80dB）
●消耗电流（≤10mA，5VDC）
●安装简便（卧式插入焊接）
电性能参数
Model No | BCE-D1407 | |
Rated Voltage | 5V | 12V |
Min Sound Pressure Level | 80dB | 85dB |
Operating Voltage | 2-7V | 8-14V |
Max Current Consumption | 10mA | |
Resonant Frequency | 4000±500HZ | |
Housing Material | PPO（PBT） | |
Operating Temperature | -20℃~+70℃ | |
Storage Temperature | -30℃~+80℃ | |
Weight | 0.8g | |
