特点：

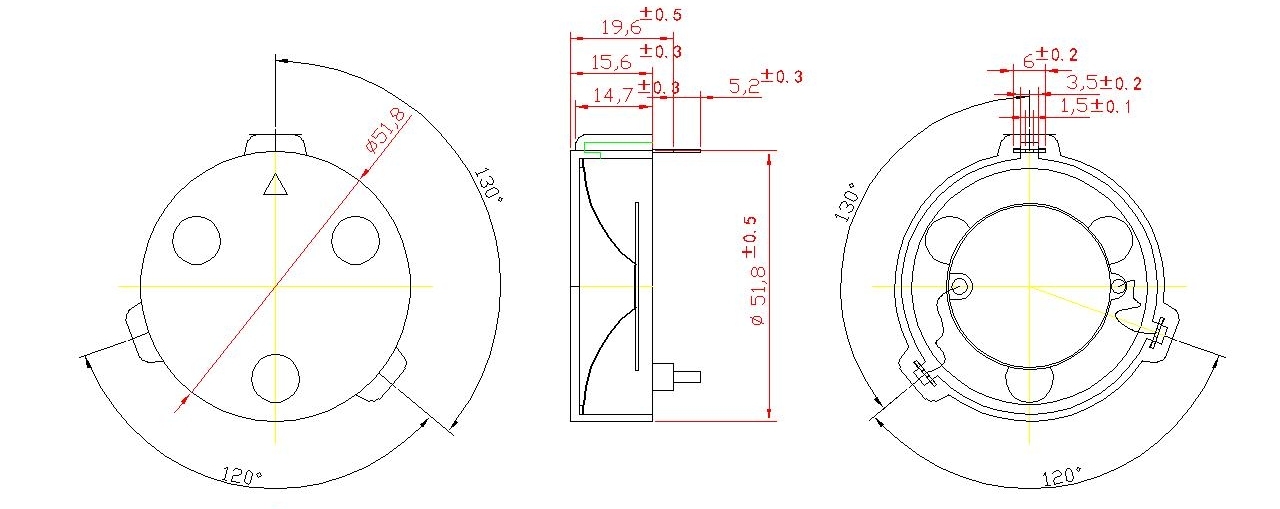

●体积小（51.8x15.6mm）
●声压高（18V时≥95dB）
●消耗电流小（≤50mA，18V2-4kHZ）
●安装简便（引线式）
电性能参数
Model No | BCE-52016 |
Min Sound Pressure Level | 95dB at 2-4KHZ at18Vp-p at 30cm |
Operating Voltage | 1~25V |
Max Current Consumption | <50mA |
Resonant Frequency | 2-4KHz |
Capacitance at 120HZ | 250±30%nF |
Housing Material | PA6 |
Operating Temperature | -20℃~+70℃ |
Storage Temperature | -30℃~+80℃ |
Weight | 13.8g |
