特点：
●体积小（14x9.5mm）
●声压高（12V时≥85dB）
●消耗电流小（≤15mA，9V2.7kHZ）
●安装简便（卧式插入焊接）
电性能参数
Model No | BCE-1327A |

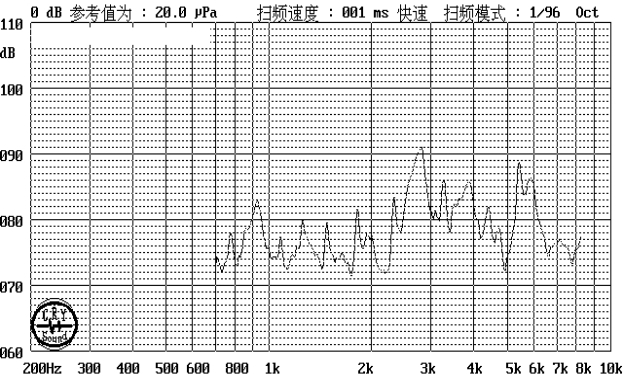

Min Sound Pressure Level | 85dB at2.7KHZ at 12Vp-p at 10cm |
Operating Voltage | 3~25V |
Max Current Consumption | <15mA |
Resonant Frequency | 2.7±0.5KHz |
Capacitance at 120HZ | 12±30%nF |
Housing Material | PBT |
Operating Temperature | -20℃~+70℃ |
Storage Temperature | -30℃~+80℃ |
Weight | 1.2g |
