特点：

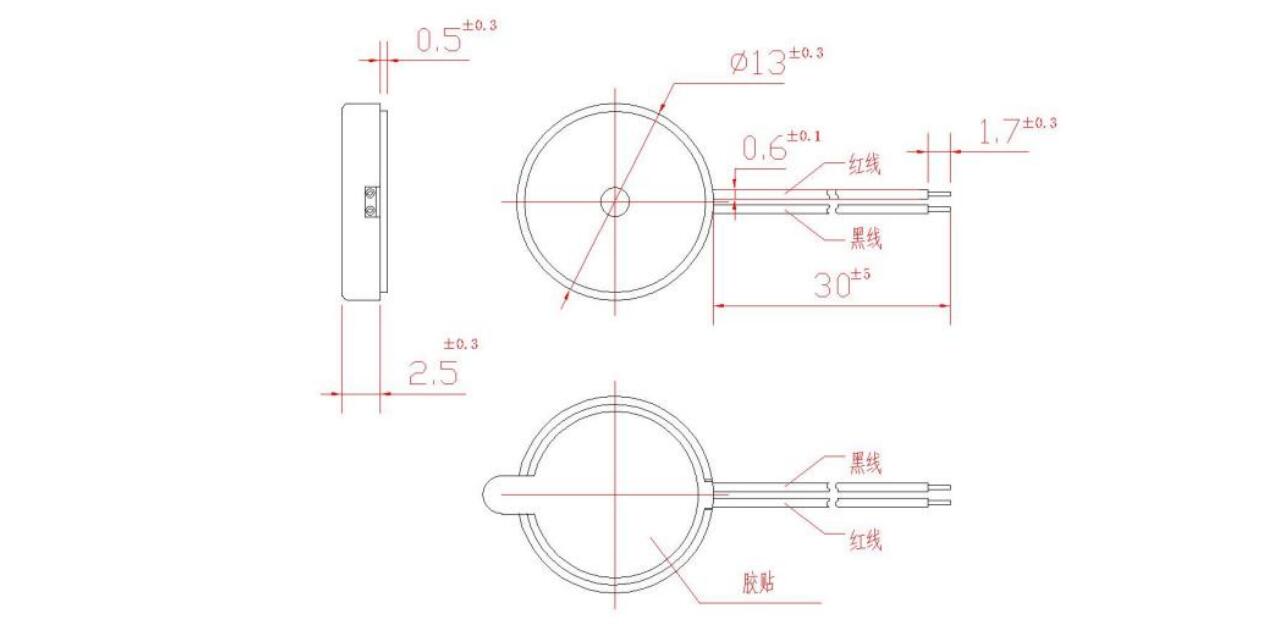

●体积小（13x2.5mm）
●声压高（9V时≥80dB）
●消耗电流小（≤6mA，9V4.8kHZ）
●安装简便（贴膜引线式）
电性能参数
Model No | BCE-131 |

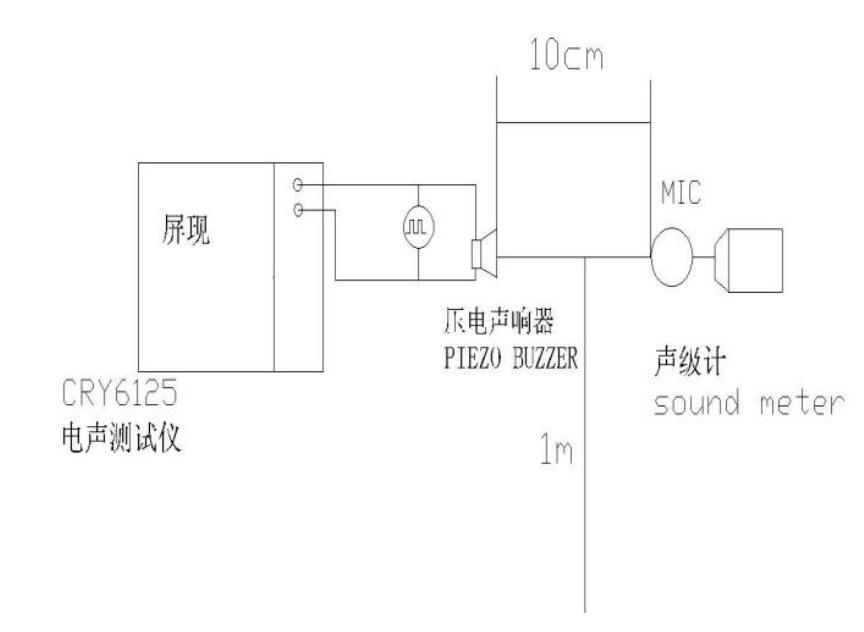

Min Sound Pressure Level | 80dB at 4.8KHZ at 9Vp-p at 10cm |
Operating Voltage | 3~25V |
Max Current Consumption | <6mA |
Resonant Frequency | 4.8±0.5KHz |
Capacitance at 120HZ | 15±30%nF |
Housing Material | PPO |
Operating Temperature | -20℃~+70℃ |
Storage Temperature | -30℃~+80℃ |
Weight | 0.7g |
